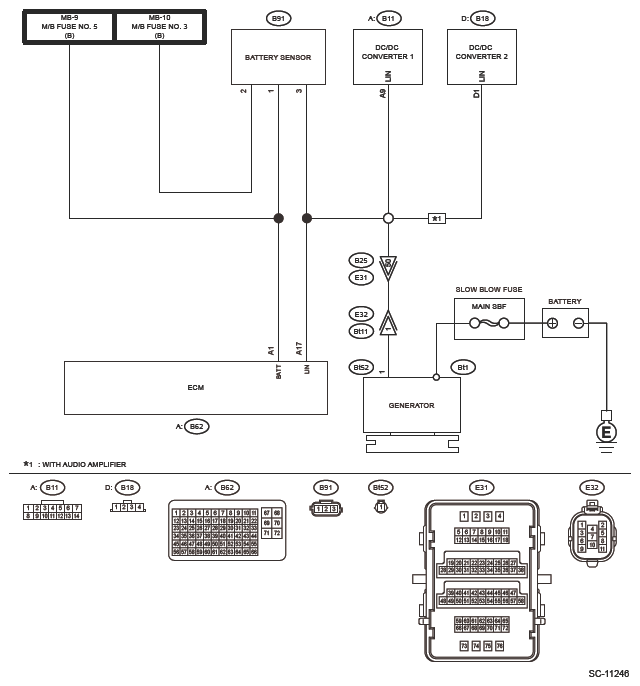

Charging System: Wiring Diagram

For the wiring diagram, refer to "Charging System" in the wiring diagram. Ref. to WIRING SYSTEM>CHARGING SYSTEM>WIRING DIAGRAM .

G16761823

Courtesy of SUBARU OF AMERICA, INC.
