Unit Inspection
WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

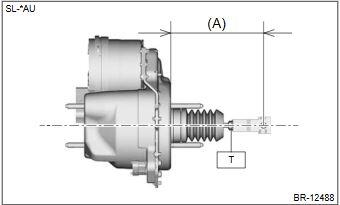

Dimension (A) at the time of electric booster assembly shipping is as shown in the figure below.
 Courtesy of SUBARU OF AMERICA, INC.
|
(A) 141.3 mm (5.56in)
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
NOTE:

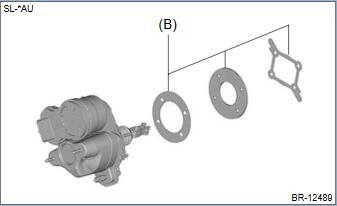

Dimension (A) is the dimension when part (B) in the figure below is removed.
 Courtesy of SUBARU OF AMERICA, INC.
|
