Front Speaker: Inspection: Tweeter

WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

MODEL WITHOUT AUDIO AMPLIFIER

Check that no foreign matter has entered the speaker and that the speaker cone is not torn, deformed, or otherwise damaged.

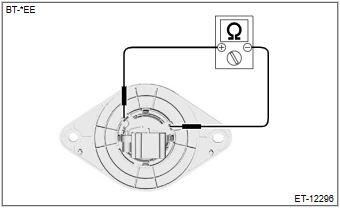

Measure the resistance between the speaker terminals.

Courtesy of SUBARU OF AMERICA, INC.

Specification:

3.15 - 3.85 Ω

Replace the speaker assembly tweeter if fault is found in the inspection.

MODEL WITH AUDIO AMPLIFIER

Check that no foreign matter has entered the speaker and that the speaker cone is not torn, deformed, or otherwise damaged.

Measure the resistance between the speaker terminals.

Courtesy of SUBARU OF AMERICA, INC.

Resistance Standards

Terminal No.	Inspection conditions	Standard
4 - 3	Always	3.05 - 4.65 Ω

Replace the speaker assembly tweeter if fault is found in the inspection.
