Hazard Switch: Removal

WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .

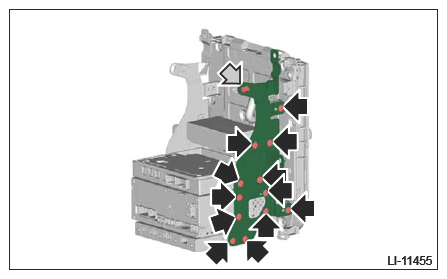

  4. Remove the screws and clips, and then remove the unit bracket LH.
    G16441296Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws to remove the switch assembly hazard.
G16441297Courtesy of SUBARU OF AMERICA, INC.
