Front Turn Signal Light Bulb: Removal
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
- Do not leave the light assembly - head without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct. (When removing the front turn signal light bulb RH) Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

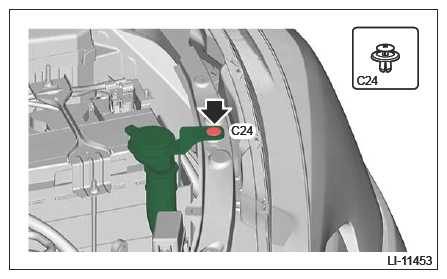

- Remove the clip of the holder windshield washer tank. (When removing the front turn signal light bulb LH)NOTE: In order to make it easier to access the front turn signal light bulb, place the holder - windshield washer tank aside so that it does not interfere with work.

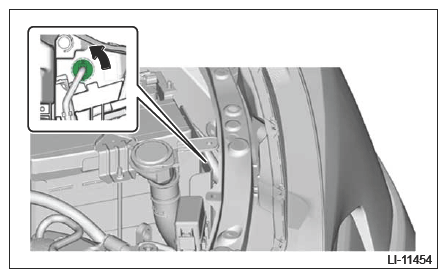

- Rotate in the direction of arrow shown in the figure to remove the bulb socket.
- Remove the front turn signal light bulb.
