Master Cylinder: Disassembly
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the reservoir tank.
CAUTION:
Be careful not to tighten a vise excessively.

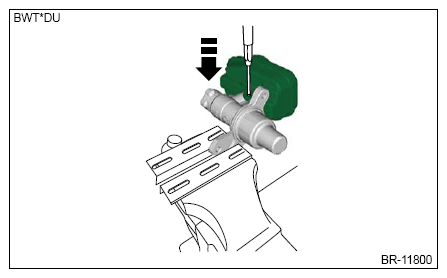

- Place the master cylinder assembly between aluminum plates and fix it on a vise.
- Drive out the pin using a punch and a hammer to remove the reservoir tank.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the seal reservoir from the master cylinder assembly.
