Front Brake Pipes And Hoses
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

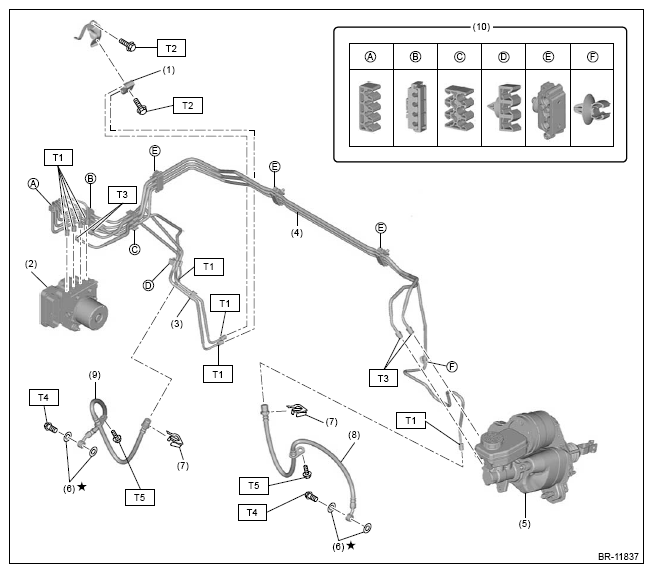

| (1) | Connector 2 - two-way |
| (2) | Hydraulic unit ASSY VDC |
| (3) | Clip |
| (4) | Pipe ASSY front ABS |
| (5) | Master cylinder ASSY and electric booster ASSY |
| (6) | Gasket |
| (7) | Clamp brake hose |
| (8) | Brake hose front LH |
| (9) | Brake hose front RH |
| (10) | Pipe clamp |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 18 (1.8, 13.3)
T3: 19 (1.9, 14.0)
T4: 26 (2.7, 19.2)
T5: 33 (3.4, 24.3)
