Center Brake Pipes And Hoses
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

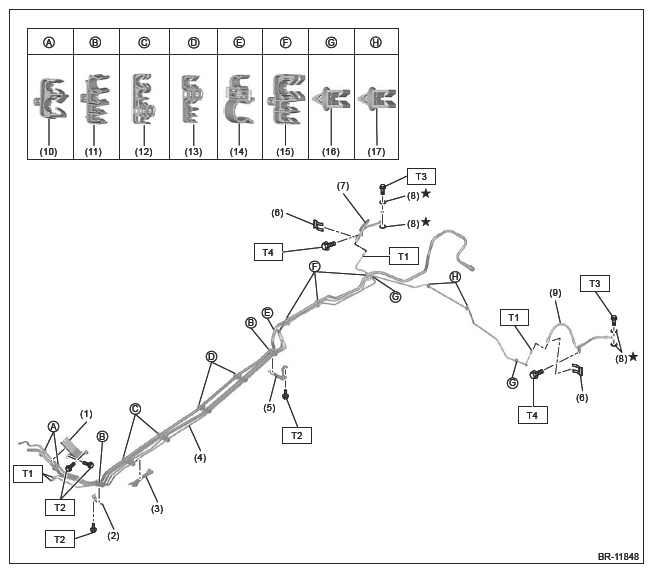

| (1) | Fuel pipe bracket A | ||||||
| (2) | Fuel pipe bracket B | ||||||
| (3) | Pipe protector | ||||||
| (4) | Pipe ASSY center(1) | ||||||
| (5) | Fuel pipe bracket C | ||||||
| (6) | Clamp brake hose | ||||||
| (7) | Brake hose rear RH | ||||||
| (8) | Gasket | ||||||
| (9) | Brake hose rear LH | ||||||
| (10) | Pipe clamp | ||||||
| (11) | Pipe clamp | ||||||
| (12) | Pipe clamp | ||||||
| (13) | Pipe clamp | ||||||
| (14) | Pipe clamp | ||||||
| (15) | Pipe clamp | ||||||
| (16) | Pipe clamp(2) | ||||||
| (17) | Pipe clamp(3) | ||||||
|
|||||||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 18 (1.8, 13.3)
T3: 26 (2.7, 19.2)
T4: 33 (3.4, 24.3)
