Front Brake Pipe

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Lift up the vehicle, and then remove the front wheels.
  4. Remove the electric booster assembly. Ref. to BRAKE>BRAKE BOOSTER>REMOVAL .
  5. Remove the pipe assembly front ABS.

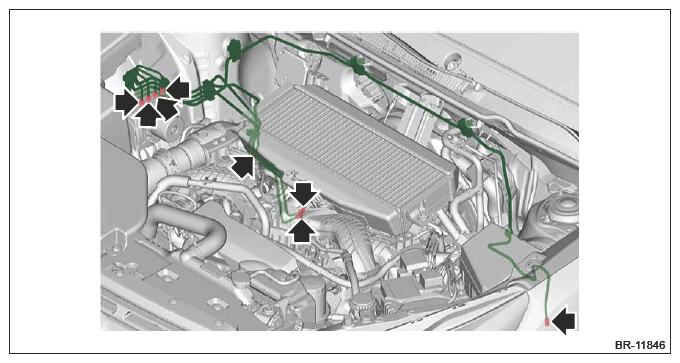

    1. Separate pipe assembly front ABS using a flare nut wrench.

      Preparation tool:

      Flare nut wrench

      G16440163Courtesy of SUBARU OF AMERICA, INC.

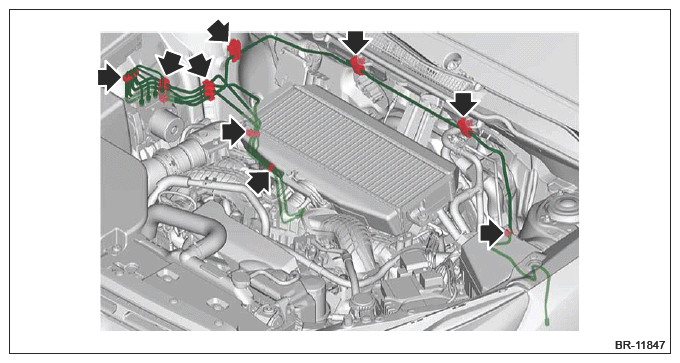

    2. Remove the pipe assembly front ABS from the clamp and clip.
G16440164Courtesy of SUBARU OF AMERICA, INC.
