Brake Pedal: Inspection
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

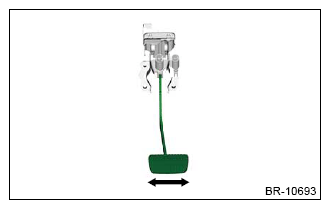

- Move the pad (AT) pedal in a horizontal direction with a force of approx. 10 N (1 kgf, 2 lbf), and check that the brake pedal deflection is in the range of specifications.CAUTION: If excessive deflection is noted, replace the bushing with a new part.
Deflection of brake pedal:
Service limit: 3.1 mm (0.122 in) or less

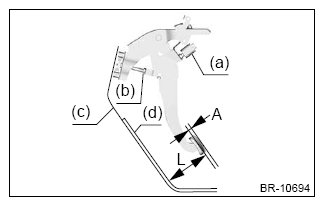

- Check the pad (AT) pedal position.
Brake pedal height L:
68 mm (2.68 in) or more
Brake pedal free play A:
0.4 - 1.8 mm (0.02 - 0.07 in) [When pulling the brake pedal upward with a force of less than 10 N (1 kgf, 2 lbf)]
(a) Stop light switch ASSY (b) Operating rod (c) Toe board (d) Mat - If it is not within the specification, loosen the lock nuts of operating rod, and rotate the rod to adjust the pedal height L within the specification.
- Tighten the lock nut.NOTE: Check the brake pedal height. When adjusting, also adjust the stop light switch assembly.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
