System Block Diagram

WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

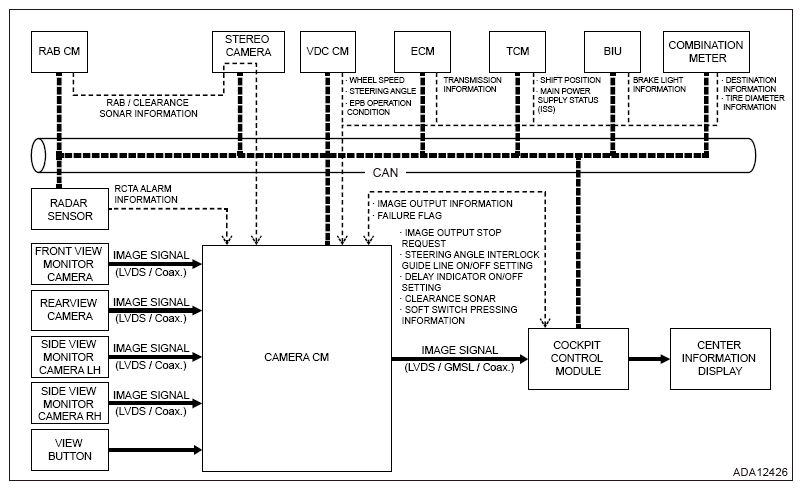

A system to process images loaded from the front view monitor camera, side view monitor camera and rearview monitor camera, and display them to the monitor.

G16447005Courtesy of SUBARU OF AMERICA, INC.
