Section 11 (Entertainment System): Woofer: Removal

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the floor mat side, floor mat center, and box sub trunk assembly.

Courtesy of SUBARU OF AMERICA, INC.

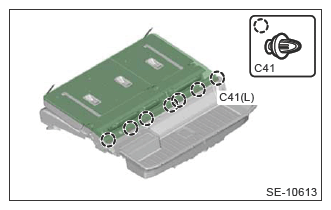

NOTE: Remove the clips for the backrest back side mat of the third-row seat.

Courtesy of SUBARU OF AMERICA, INC.
Remove the third-row seats. Ref. to SEATS>THIRD SEAT .
Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
Remove the speaker assembly woofer.
1. Disconnect the connector.
2. Remove the bolts and remove the speaker assembly woofer.

Courtesy of SUBARU OF AMERICA, INC.
