Power Amplifier & Woofer

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

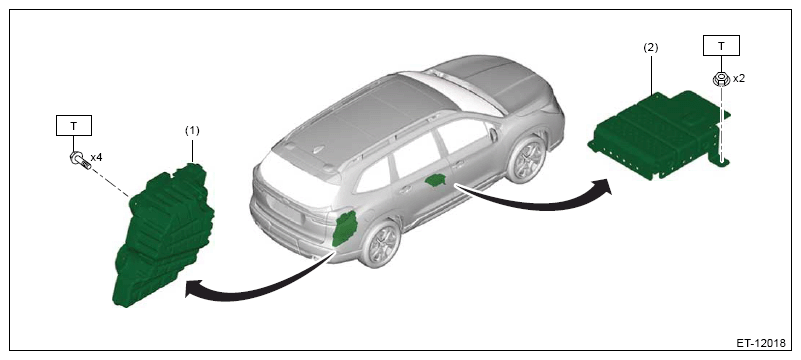

Fig 1: Power Amplifier And Woofer Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Speaker ASSY woofer
(2)	Power amplifier ASSY

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
