Front Speaker: Removal: Center

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the grille speaker assembly CTR.

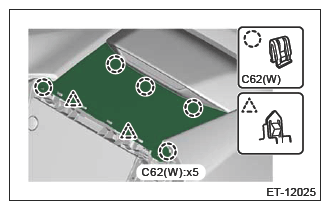

    1. Release the clips and claws, and detach the grille speaker assembly CTR.
    G16441481Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the speaker assembly center.

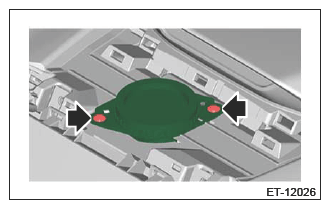

    1. Remove the screws.
      G16441482Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly center.
