USB Power Supply: Front

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • Shift the select lever into "N" before disconnecting the ground terminal from the battery sensor.
    • On models with power seat, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
  2. Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  4. Remove the cover center side RH.
    1. Remove the screws.
    2. Disconnect the connector.
    3. Release the clips and pull the cover center side RH to remove.
    G16441346Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cover center side LH.
    1. Remove the harness clamp.
    2. Release the clips and pull the cover center side LH to remove.
    G16441514Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the switch panel front.
    1. Release the clips and claws.
      G16441515Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the switch panel front.

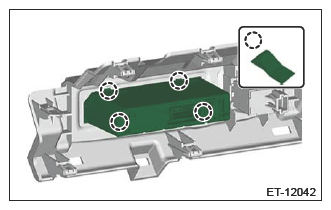

  7. While pressing the claw, press it in from the rear to remove the AUX unit assembly.
G16441564Courtesy of SUBARU OF AMERICA, INC.
