Section 11 (Entertainment System): Camera: Adjustment: Preparations

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

Before performing the inspection, check the following items.
1. The headlight is off.
2. The workplace is flat and level.
3. The inflation pressure of tires is correct.
4. The vehicle does not have load. (Except for the standard equipment tools and spare tire)

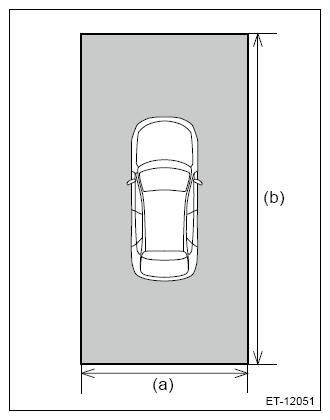

Park the vehicle while securing the following space around the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

(a)	Approx. 5 m (16.41 ft)
(b)	Approx. 8 m (26.25 ft)
