Accessory Power Supply Socket: Removal: Front
WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
- Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
- Remove the socket assembly.
- Disconnect the connector.

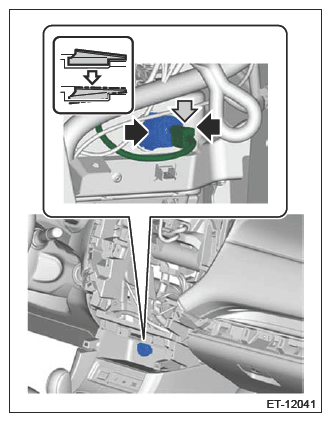

- While releasing the claw, press it in from the rear to remove the socket assembly.
