Rear Wiper
WARNING: This page is about a different car, the 2024 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.

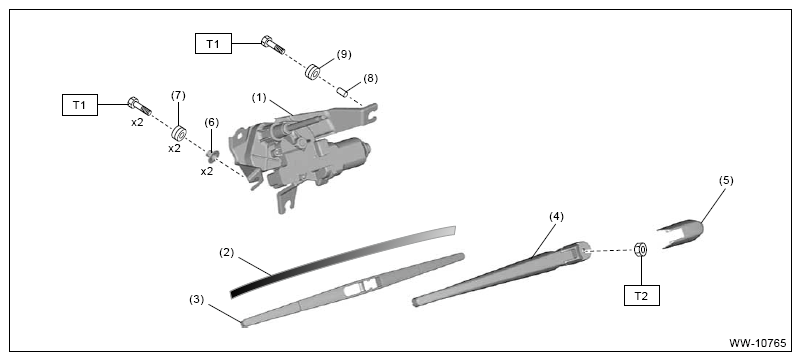

| (1) |
Motor ASSY rear wiper |
| (2) |
Rubber rear wiper |
| (3) |
Blade rear wiper |
| (4) |
Arm ASSY rear wiper |
| (5) |
Cover rear wiper arm |
| (6) |
Collar |
| (7) |
Rubber |
| (8) |
Collar |
| (9) |
Rubber |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 8 (0.8, 5.9)
