2.5 L Model

  1. Remove the cover.
    G16761856Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the terminal B.
    G16761857Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear cover.
    G16761858Courtesy of SUBARU OF AMERICA, INC.

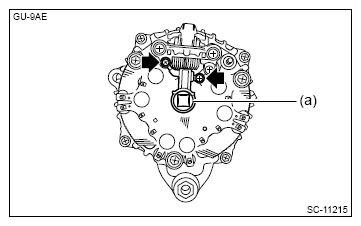

  4. Remove the brush holder.
    NOTE: Set the socket with suitable size etc. (a) to the brush holder, and slide the brush holder toward the socket etc. (a) to remove so that the brush does not pop out.
    G16761859Courtesy of SUBARU OF AMERICA, INC.

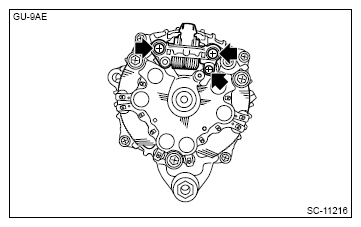

  5. Remove the IC regulator.
    G16761860Courtesy of SUBARU OF AMERICA, INC.
