Battery Cable Assembly: Installation

  1. Install the terminal base.
    CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

    Residual anti-rust grease or dirt may cause overtorque.

    Tightening torque:

    6 N.m (0.6 kgf-m, 4.4 ft-lb)

    • VIN:] JF1############## [model and] JF2############## [model
      G14601667Courtesy of SUBARU OF AMERICA, INC.
    • VIN:] 4S4############## [model
      G16761895Courtesy of SUBARU OF AMERICA, INC.
  2. Install the slow blow fuse.
    1. Connect the terminal (B) and the terminal (A) to the slow blow fuse (C).

      Tightening torque:

      5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

      G14601659Courtesy of SUBARU OF AMERICA, INC.
  3. Install the battery cable assembly.
    1. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.

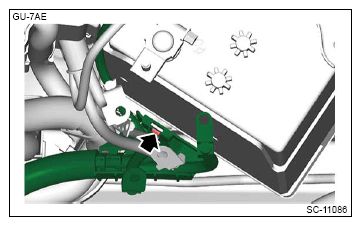

      G16761892Courtesy of SUBARU OF AMERICA, INC.
    2. Secure the battery cable assembly to the intake manifold assembly with the claw (D).
    3. Secure the battery cable assembly to the intake manifold assembly with the clip (C).
    4. Secure the engine wiring harness with the clip (B).
    5. Connect the connector (A).
      G16760390Courtesy of SUBARU OF AMERICA, INC.
    6. Secure the battery cable assembly with the clip (E) and clip (D).
    7. Connect the connector (C) and connector (B).
    8. Connect the terminal B (A).
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

      G16760388Courtesy of SUBARU OF AMERICA, INC.
    9. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
      CAUTION: This procedure is required to prevent rust and suppress sulfation.

      Preparation items  :

      Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM .

      • 2.0 L model
        G16761842Courtesy of SUBARU OF AMERICA, INC.
        (A) Anti-rust grease application area
      • 2.5 L model
        G16761843Courtesy of SUBARU OF AMERICA, INC.
        (A) Anti-rust grease application area
    10. Install the V-belt cover.
      NOTE:
      • Check the grommet for peel-off or disengagement.
      • Be careful not to deform the bracket during installation.

      Tightening torque:

      7 N.m (0.7 kgf-m, 5.2 ft-lb)

    11. Connect the terminal B.
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      T1: 11 N.m (1.1 kgf-m, 8.1 ft-lb)

    12. Connect the ground terminal.
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

    13. Connect the connector.

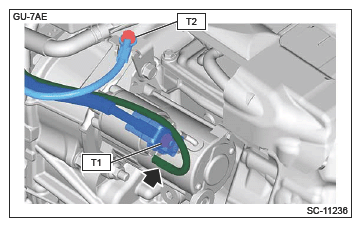

      G16761829Courtesy of SUBARU OF AMERICA, INC.
    14. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
      CAUTION: This procedure is required to prevent rust and suppress sulfation.

      Preparation items  :

      Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM .

      G16761830Courtesy of SUBARU OF AMERICA, INC.
      (A) Anti-rust grease application area
    15. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
      CAUTION: This procedure is required to prevent rust and suppress sulfation.

      Preparation items  :

      Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM .

      G16761831Courtesy of SUBARU OF AMERICA, INC.
      (A) Anti-rust grease application area
    16. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
    17. Set the terminal of battery cable assembly.
      G14601658Courtesy of SUBARU OF AMERICA, INC.
    18. Connect the slow blow fuse.
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

      G14601657Courtesy of SUBARU OF AMERICA, INC.
    19. Connect the terminal (A) and the terminal (B).
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    20. Connect the terminal (C).
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

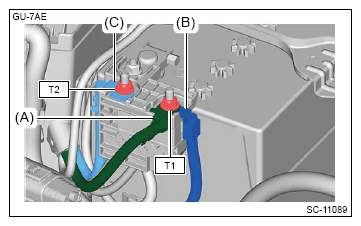

      G16761909Courtesy of SUBARU OF AMERICA, INC.
    21. After connecting each terminal, apply a thin coat of anti-rust grease to the terminal section.
      CAUTION: This procedure is required to prevent rust and suppress sulfation.

      Preparation items  :

      Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM .

      • VIN:] JF1############## [model and] JF2############## [model
        G16761910Courtesy of SUBARU OF AMERICA, INC.
        (A) Anti-rust grease application area
      • VIN:] 4S4############## [model

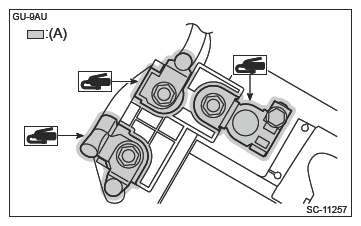

        G16761911Courtesy of SUBARU OF AMERICA, INC.
        (A) Anti-rust grease application area
    22. Install the battery sensor harness to the clip (E).
    23. Install the battery cable holder (D).
    24. Connect the ground terminal (C).
      CAUTION:
      • Install the battery sensor and battery cable assembly without applying an excessive force.
      • Clean and degrease the bolt threads, terminals and seating surfaces.

        Residual anti-rust grease or dirt may cause overtorque.

      • Do not apply anti-rust grease to the battery sensor and the ground terminal.

      Tightening torque:

      T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    25. Secure the ground cable with the clip (B).
    26. Connect the ground terminal (A).
      CAUTION: Clean and degrease the bolt threads, terminals and seating surfaces.

      Residual anti-rust grease or dirt may cause overtorque.

      Tightening torque:

      T2: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

      • VIN:] JF1############## [model and] JF2############## [model

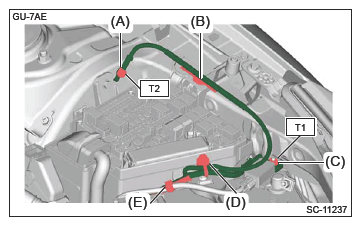

        G16761912Courtesy of SUBARU OF AMERICA, INC.
      • VIN:] 4S4############## [model

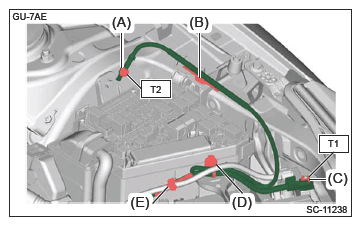

        G16761913Courtesy of SUBARU OF AMERICA, INC.
    27. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
      CAUTION: This procedure is required to prevent rust and suppress sulfation.

      Preparation items  :

      Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM .

      G16761914Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area

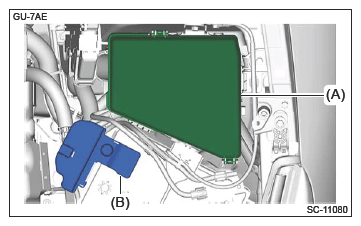

  4. Install the fuse box cover (A) and terminal boot (B).
    G16761880Courtesy of SUBARU OF AMERICA, INC.

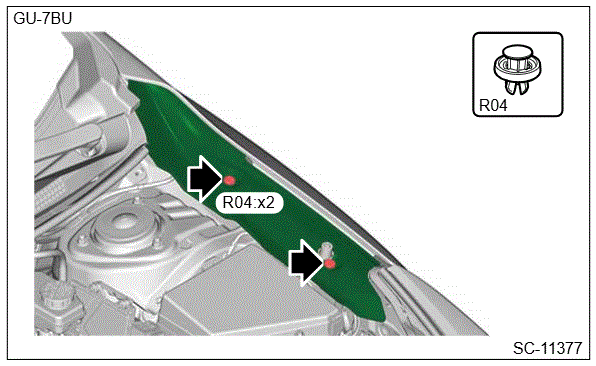

  5. Install the cover fender UPR LH.
    G00650644Courtesy of SUBARU OF AMERICA, INC.
