IMPREZA Model

- 2024MY

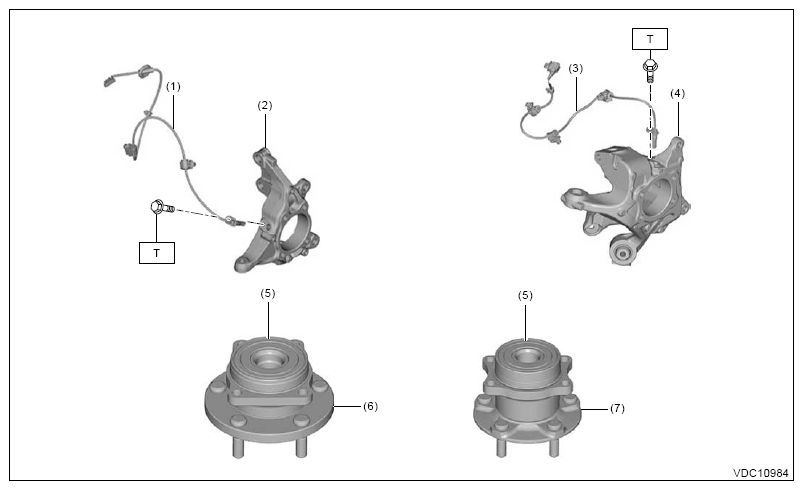

Fig 1: ABS Wheel Speed Sensor Components Location - Impreza Model - 2024 MY

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: Nm (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

- 2025MY

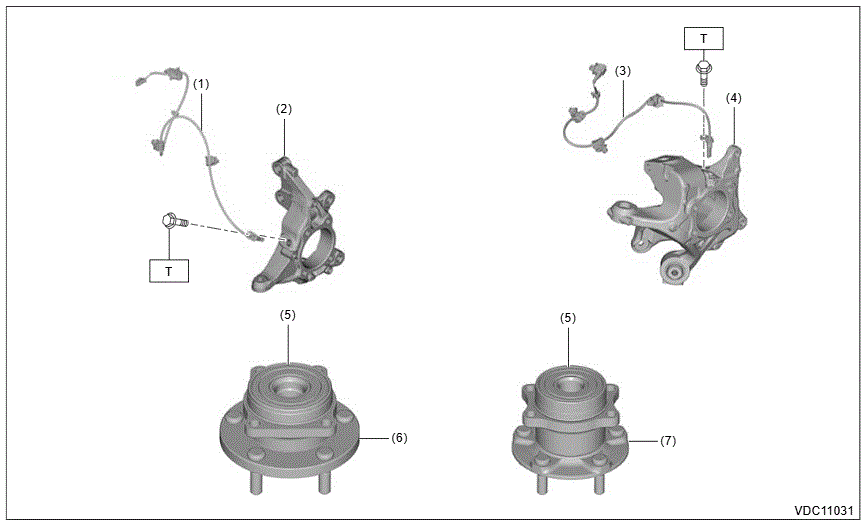

Fig 2: ABS Wheel Speed Sensor Components Location - Impreza Model - 2025 MY

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: Nm (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
