CROSSTREK Model

- 2024MY

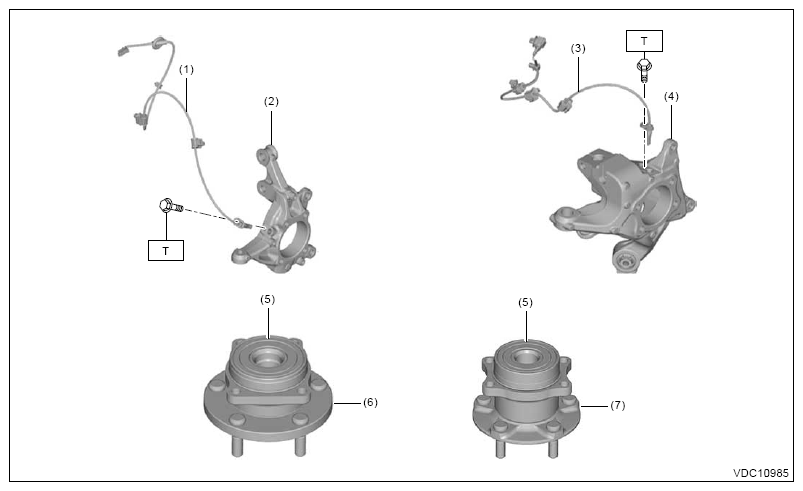

Fig 1: ABS Wheel Speed Sensor Components Location - Crosstrek Model - 2024 MY
G16767224Courtesy of SUBARU OF AMERICA, INC.
(1) Sensor sub ASSY front
(2) Front axle housing
(3) Sensor sub ASSY rear
(4) Rear axle housing
(5) Magnetic encoder
(6) Front hub unit bearing
(7) Rear hub unit bearing

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

- 2025 MY

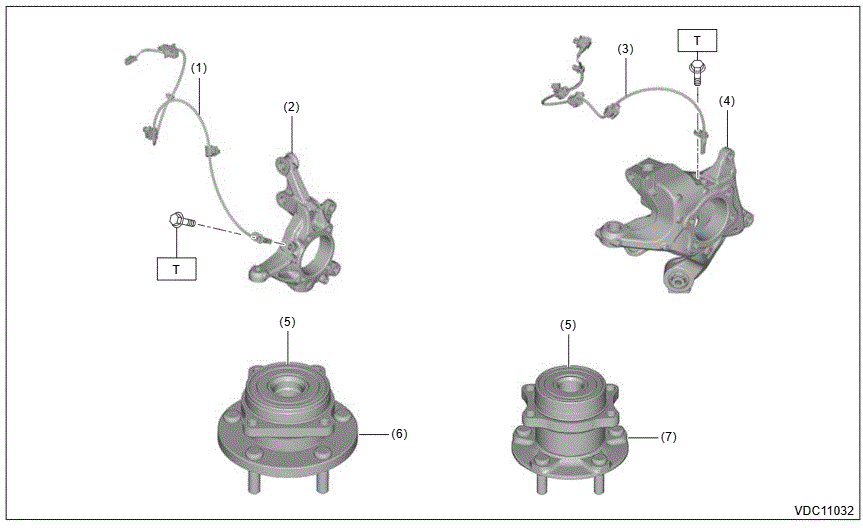

Fig 2: ABS Wheel Speed Sensor Components Location - Crosstrek Model - 2025 MY
G00659575Courtesy of SUBARU OF AMERICA, INC.
(1) Sensor sub ASSY front
(2) Front axle housing
(3) Sensor sub ASSY rear
(4) Rear axle housing
(5) Magnetic encoder
(6) Front hub unit bearing
(7) Rear hub unit bearing

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
