Home >> Subaru >> 2025 >> Crosstrek Base >> Repair and Diagnosis >> Suspension >> Front Suspension System And Wheel Alignment >> Stabilizer >> Removal >> Stabilizer Link

Stabilizer Link

CAUTION: Be careful not to damage the boot of the ball joint.
NOTE: Components: Ref. to FRONT SUSPENSION>GENERAL DESCRIPTION>COMPONENT>FRONT SUSPENSION .
  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

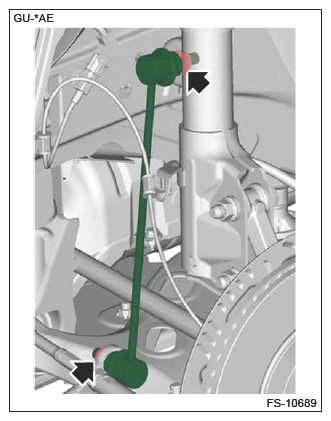

  2. Remove the front stabilizer link.
    1. Remove the nut.
    2. Remove the front stabilizer link.
    G16761988Courtesy of SUBARU OF AMERICA, INC.
