Universal Joint: Inspection

Check for wear, damage or any other faults.

1. Check the steering assembly universal joint for excessive looseness.

   Service limit:

   Play of the steering assembly universal joint: 0 mm (0 in)

   Courtesy of SUBARU OF AMERICA, INC.

2. Measure the swing load of the steering assembly universal joint.
   1. Place the steering assembly universal joint between wooden blocks and fix it on a vise.

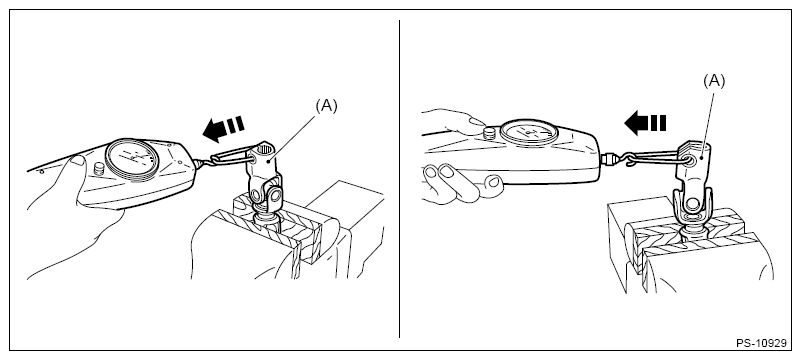

   2. With the yoke (A) of gearbox side facing up, measure the swing load in two directions.

      Service limit:

      Maximum load (Impreza model): 4.5 N (0.46 kgf, 1.01 lbf) or less

      Maximum load (Crosstrek model): 2.8 N (0.29 kgf, 0.63 lbf) or less

      Courtesy of SUBARU OF AMERICA, INC.

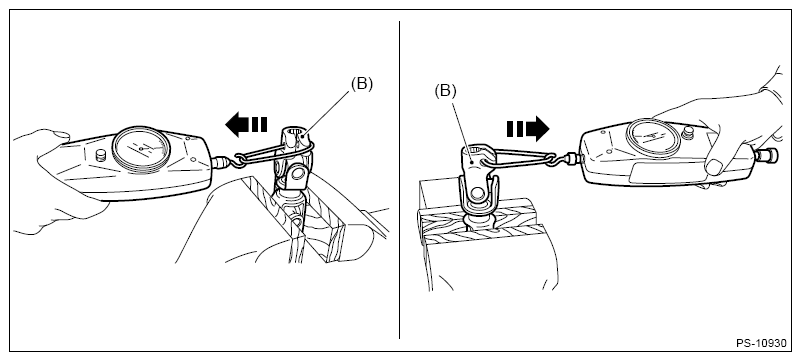

   3. With the yoke (B) of the steering column assembly side facing up, measure the swing load in two directions.

      Service limit:

      Maximum load: 5.4 N (0.55 kgf, 1.21 lbf) or less

      Courtesy of SUBARU OF AMERICA, INC.

   4. Replace as necessary, if it is found defective.
