Operating Cylinder: Removal

CAUTION: Do not let clutch fluid come into contact with the painted surface of the vehicle.
Wash away with water immediately and wipe off if it is spilled by accident.

NOTE: The operating cylinder cannot be disassembled.

Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

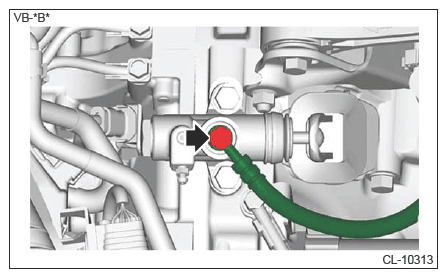

Disconnect the clutch hose.
CAUTION: Prepare the container for draining of the clutch fluid.

Courtesy of SUBARU OF AMERICA, INC.

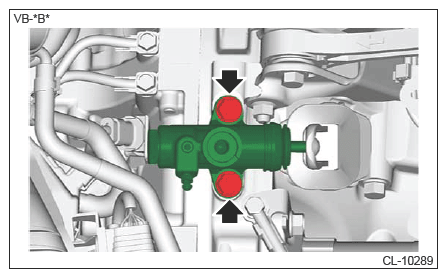

Remove the operating cylinder.

Courtesy of SUBARU OF AMERICA, INC.
