Continuously Variable Transmission (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)

TCM

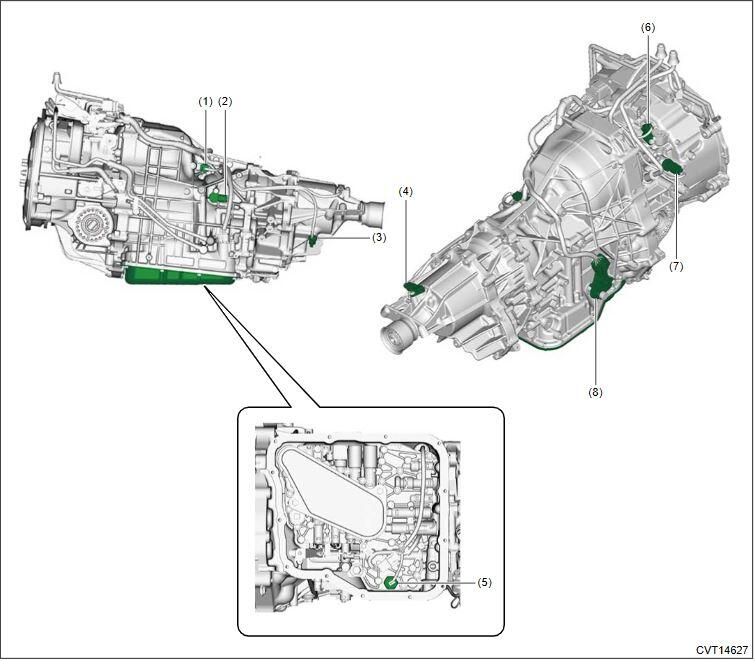

Courtesy of SUBARU OF AMERICA, INC.

(1)	Primary speed sensor
(2)	Secondary speed sensor
(3)	Front wheel speed sensor
(4)	Rear wheel speed sensor
(5)	Line pressure sensor
(6)	Primary speed sensor
(7)	Secondary pressure sensor
(8)	Inhibitor switch
