Pitching Stopper

1. Install the pitching stopper bracket.

   Tightening torque:  41 N.m (4.2 kgf-m, 30.2 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the bolts which secure the CVTF cooler pipe No. 1.

   Tightening torque:  16 N.m (1.6 kgf-m, 11.8 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

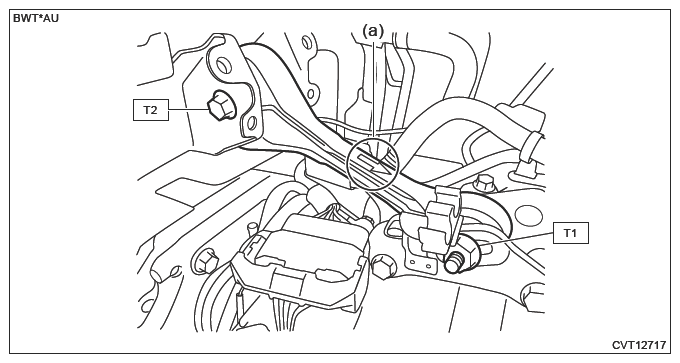

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Bolt And Nut With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  32.3 N.m (3.3 kgf-m, 23.8 ft-lb)
