Transfer Clutch: Removal

  1. Remove the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .
  2. Remove the driven plate No. 3 and transfer clutch plate set from the center differential carrier.

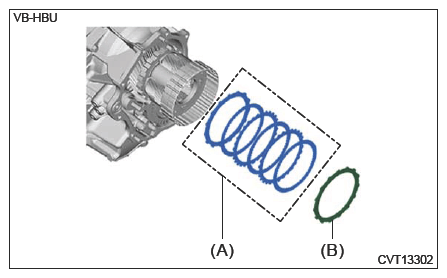

    G16539597Courtesy of SUBARU OF AMERICA, INC.
    (A)  Transfer clutch plate set
    (B)  Driven plate No. 3
