Center Differential Carrier: Installation

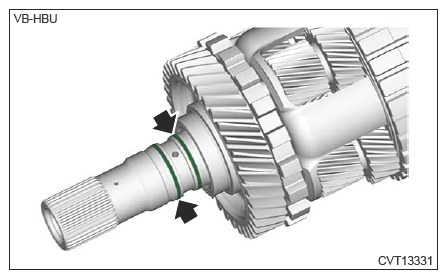

  1. Install a new seal ring.
    NOTE:
    • Do not stretch the seal ring excessively.
    • Apply CVTF to the seal rings.
    G14611277Courtesy of SUBARU OF AMERICA, INC.

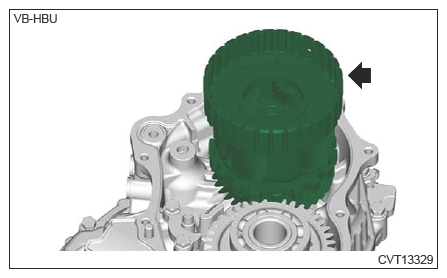

  2. Install the center differential carrier.
    G14611276Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
