Center Differential Carrier: Disassembly

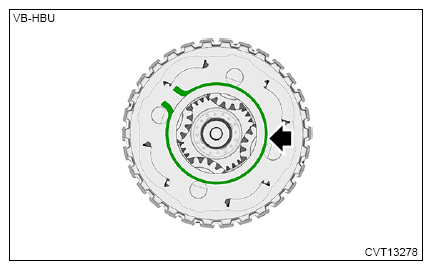

Remove the snap ring from the center differential carrier.

Courtesy of SUBARU OF AMERICA, INC.

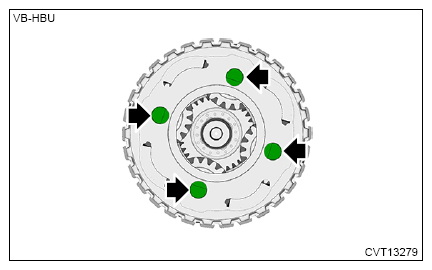

Remove the pinion shafts.

Courtesy of SUBARU OF AMERICA, INC.
Remove the pinion gear and washers.
NOTE: Be careful not to drop the needle bearing and spacer in the pinion gear.

Courtesy of SUBARU OF AMERICA, INC.

(A) Washer

(B) Pinion gear
Remove the needle bearing and spacer from the pinion gear.

Courtesy of SUBARU OF AMERICA, INC.

(A) Needle bearing

(B) Spacer

Remove the intermediate shaft and thrust bearing.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Intermediate shaft
(B)	Thrust bearing

(A)	Washer
(B)	Pinion gear
