VDC Control Module and Hydraulic Control Unit (VDCCM & H/U): Removal

CAUTION:
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the hydraulic unit assembly VDC.
    CAUTION:
    • Do not pull on the harness when disconnecting the connector.
    • Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the painted surface of the vehicle body.
    • If brake fluid is spilled on the painted surface of the vehicle body, wash it off immediately with water and wipe clean.
    1. Remove dirt from around the hydraulic unit assembly VDC.

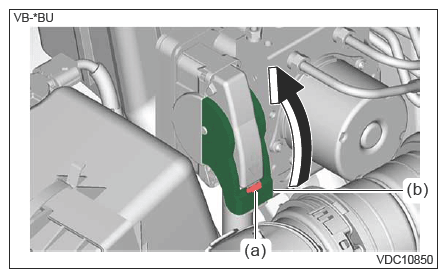

    2. Pull up the lock lever (b) while pressing the lock button (a) to disconnect the hydraulic unit assembly VDC connector.
      G14602110Courtesy of SUBARU OF AMERICA, INC.

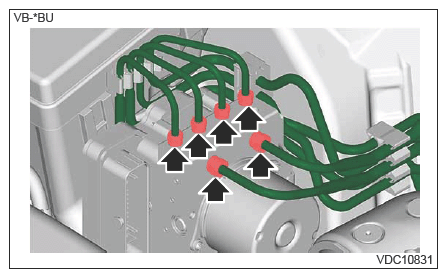

    3. Separate pipe assembly front ABS using a flare nut wrench.
      G14602111Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the bolts and nut, and then remove the following parts.
      • Bracket COMPL hydraulic unit VDC
      • Hydraulic unit assembly VDC
        G14385117Courtesy of SUBARU OF AMERICA, INC.
