Outer Mirror Assembly: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

NOTE: Refer to "DISASSEMBLY" for removal procedures of outer mirror cover and mirror face. Ref. to GLASS/WINDOWS/MIRRORS>OUTER MIRROR ASSEMBLY>DISASSEMBLY .

Operate the switch power window to move the glass assembly front door to the lowest position.
Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .

Turn over the sealing cover door front.

CAUTION:

Carefully remove the butyl tape. Excessive force will easily break the front sealing cover.
If the front sealing cover gets broken, replace it with a new part.
Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

Disconnect the outer mirror assembly connector.

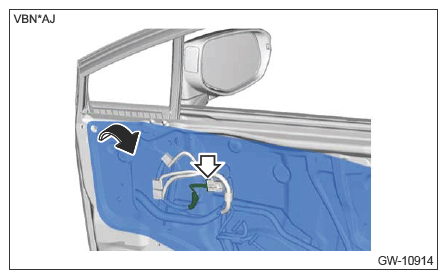

Carefully remove and turn over the sealing cover door front within the area where the operation can be performed.

Courtesy of SUBARU OF AMERICA, INC.

Remove the outer mirror assembly.

Remove the harness clip.

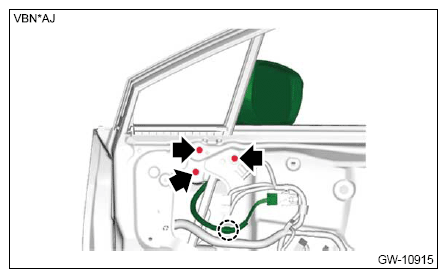

Remove the bolts to remove outer mirror assembly.

Courtesy of SUBARU OF AMERICA, INC.
