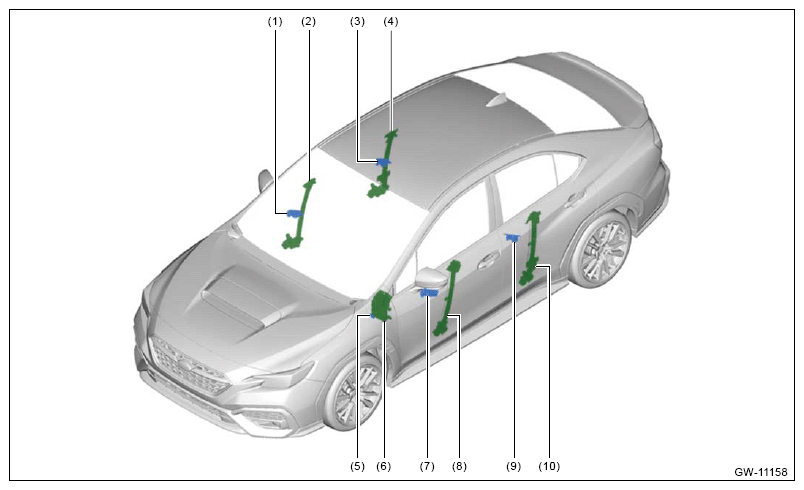

Power Window System (Diagnostics): Electrical Component Location: Location
| (1) | Front power window sub-switch |
| (2) | Front regulator & motor ASSY (passenger's side) |
| (3) | Rear power window sub-switch RH |
| (4) | Rear regulator & motor ASSY RH |
| (5) | Data link connector |
| (6) | Body integrated unit |
| (7) | Power window main switch |
| (8) | Front regulator & motor ASSY (driver's side) |
| (9) | Rear power window sub-switch LH |
| (10) | Rear regulator & motor ASSY LH |
