Front Hood Lock

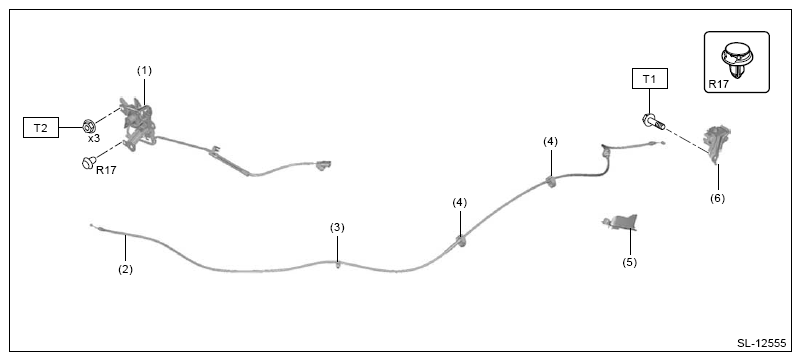

Fig 1: Front Hood Lock Components Location

G16541094

Courtesy of SUBARU OF AMERICA, INC.

(1)	Lock ASSY front hood
(2)	Cable ASSY front hood
(3)	Clip
(4)	Clip
(5)	Protector cable
(6)	Opener handle

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
