Backup Unit: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL .
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .
  5. Remove the telematics sub antenna. Ref. to ENTERTAINMENT & MONITORING>ANTENNA>REMOVAL>TELEMATICS SUB ANTENNA .

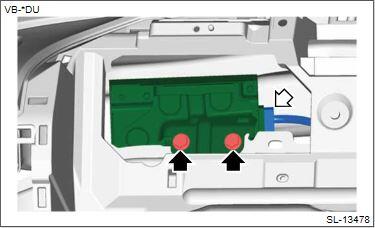

  6. Remove the backup unit assembly.
    1. Remove the bolt.
    2. Disconnect the connector, and remove the backup unit assembly.
      G00674230Courtesy of SUBARU OF AMERICA, INC.
