Roof Antenna

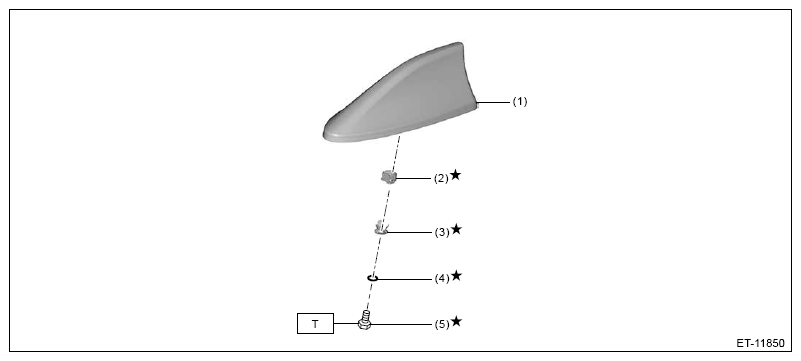

Fig 1: Roof Antenna Components Location

G16540820

Courtesy of SUBARU OF AMERICA, INC.

(1)	Antenna ASSY roof
(2)	Clip
(3)	Spring
(4)	Washer
(5)	Bolt

Tightening torque: N.m (kgf-m, ft-lb)

T: 4.5 ±1 (0.5±0.1, 3.3±0.7)
