Rear Side Reflex Reflector

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

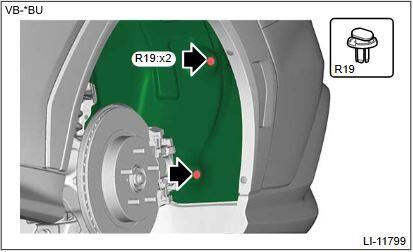

  2. Remove the clips and turn over the mud guard rear.
    G00686022Courtesy of SUBARU OF AMERICA, INC.
  3. Release the clip and claw, then remove the rear side reflex reflector.
    G14612408Courtesy of SUBARU OF AMERICA, INC.
