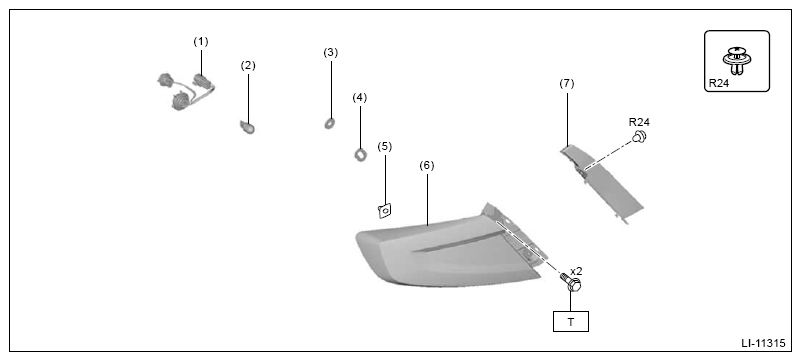

Rear Combination Light
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Cord ASSY |
| (2) |
Turn signal light bulb |
| (3) |
Gasket |
| (4) |
Gasket |
| (5) |
Grommet |
| (6) |
Light ASSY rear combination |
| (7) |
Cover ASSY rear combination |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
