Model Without SRH

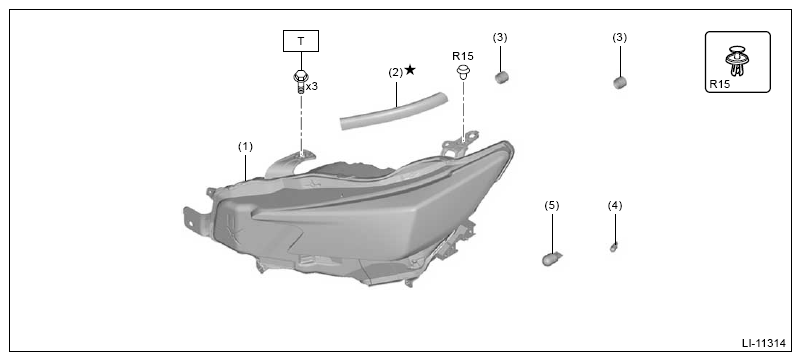

Fig 1: Headlight Components Location (Model Without SRH)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Light ASSY head
(2)	Hood seal rubber
(3)	Cap
(4)	Front side marker light bulb
(5)	Parking & front turn signal light bulb

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
