Fuse Reset

  1. Park the vehicle on a level ground.
  2. Turn the ignition switch to OFF and remove the delivery mode fuse from the position (1).
  3. Install the delivery mode fuse in the position (2) and then turn the ignition switch to ON.
  4. Turn the ignition switch to OFF, install the delivery mode fuse in the position (1), and start the engine.

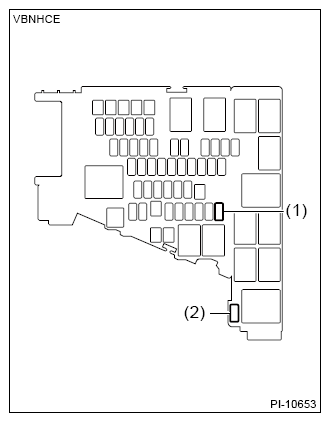

    G16534707Courtesy of SUBARU OF AMERICA, INC.
    (1) Delivery mode fuse inlet
    (2) Delivery mode fuse holder
