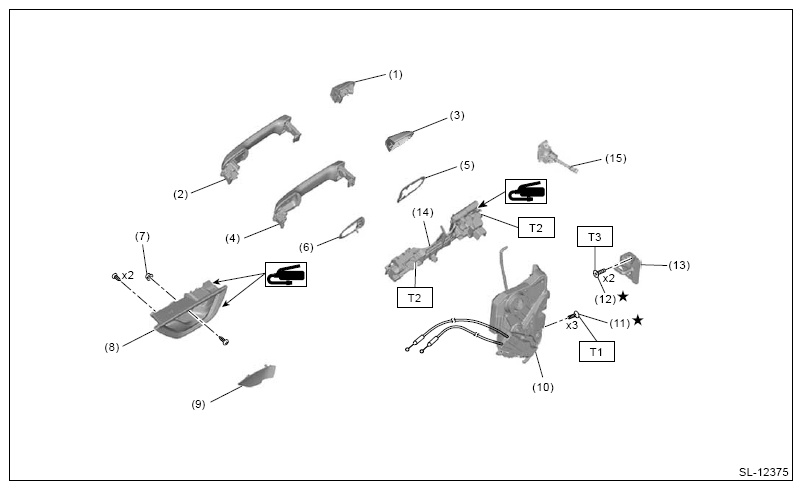

Door Lock Assembly: Front
| (1) | Cover handle front outer (passenger's side) |
| (2) | Handle front door outer (model with keyless access with push button start) |
| (3) | Cover handle front outer (driver's side) |
| (4) | Handle front door outer (model without keyless access with push button start) |
| (5) | Spacer door handle outer B |
| (6) | Spacer door handle outer A |
| (7) | Grommet screw |
| (8) | Remote ASSY door |
| (9) | Cap remote |
| (10) | Latch & actuator ASSY front |
| (11) | TORX® bolt |
| (12) | Screw |
| (13) | Striker door |
| (14) | Frame ASSY front door outer |
| (15) | Key cylinder (driver's side) |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.5 (0.7, 4.8)
T2: 7.5 (0.8, 5.5)
T3: 18 (1.8, 13.3)
