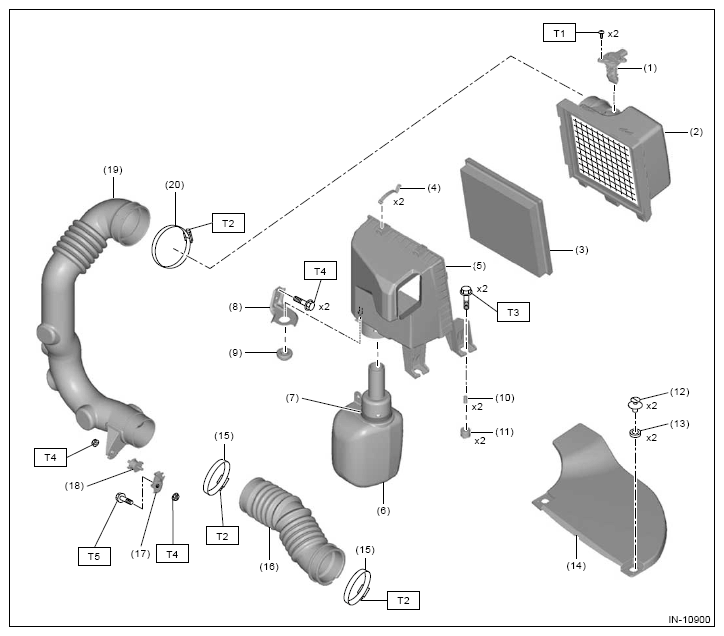

Air Cleaner
WARNING: This page is about a different variant/trim than selected.
| (1) | Mass air flow and intake air temperature sensor | ||
| (2) | Air cleaner case (rear) | ||
| (3) | Air cleaner element | ||
| (4) | Clip | ||
| (5) | Air cleaner case (front)(1) | ||
| (6) | Resonator chamber (with cushion)(1) | ||
| (7) | Cushion | ||
| (8) | Air cleaner case bracket | ||
| (9) | Cushion | ||
| (10) | Spacer | ||
| (11) | Cushion | ||
| (12) | Clip | ||
| (13) | Cushion | ||
| (14) | Air intake duct | ||
| (15) | Clamp | ||
| (16) | Air intake boot | ||
| (17) | Turbo duct bracket | ||
| (18) | Cushion | ||
| (19) | Turbo duct | ||
| (20) | Clamp | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 1 (0.1, 0.7)
T2: 2.5 (0.3, 1.8)
T3: 6 (0.6, 4.4)
T4: 7.5 (0.8, 5.5)
T5: 18 (1.8, 13.3)
