Engine Control Module (ECM): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

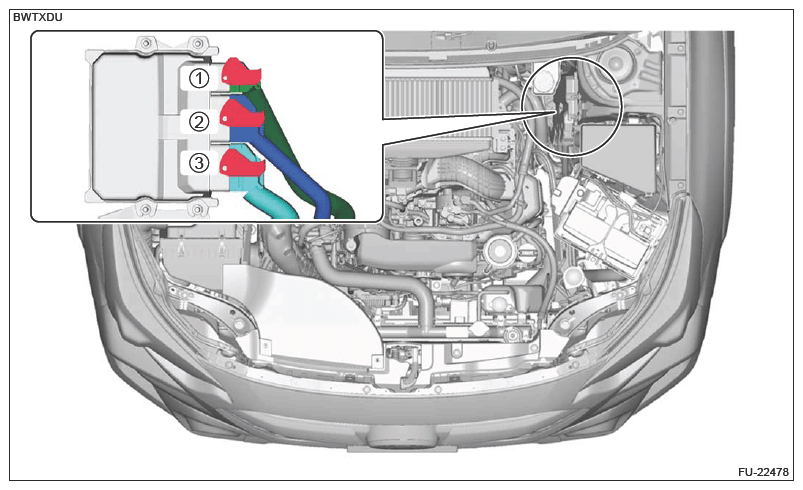

- Disconnect the connector in numerical order as shown in the figure.

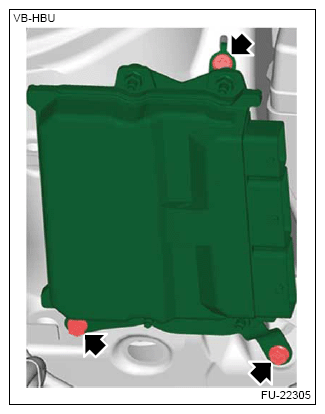

- Remove the ECM from vehicle.

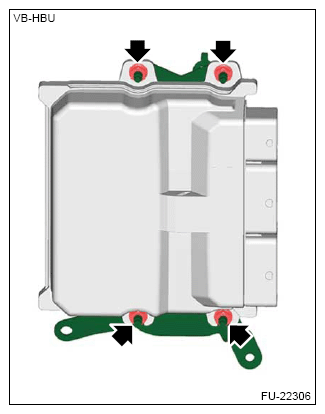

- Remove the ECM bracket.
