Crankshaft And Piston
WARNING: This page is about a different variant/trim than selected.

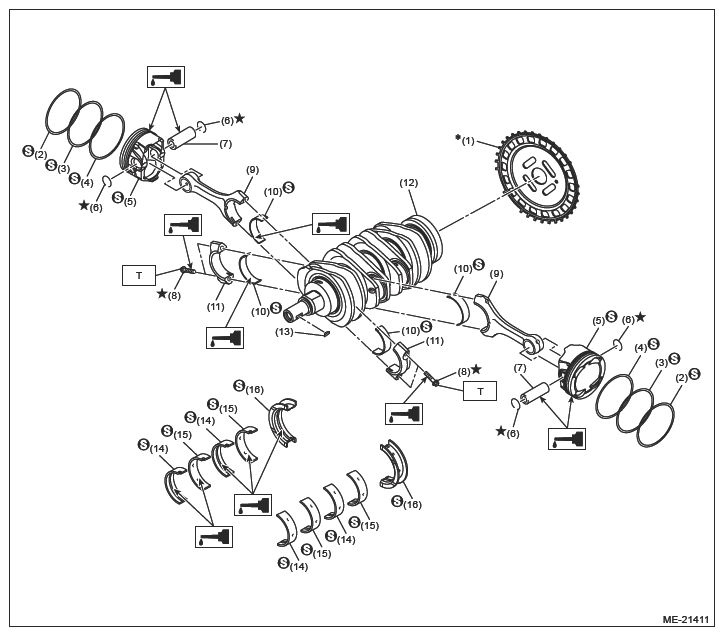

| (1) | Crankshaft position sensor plate | ||
| (2) | Top ring | ||
| (3) | Second ring | ||
| (4) | Oil ring | ||
| (5) | Piston | ||
| (6) | Circlip(1) | ||
| (7) | Piston pin | ||
| (8) | Connecting rod cap bolt | ||
| (9) | Connecting rod | ||
| (10) | Connecting rod bearing | ||
| (11) | Connecting rod cap | ||
| (12) | Crankshaft | ||
| (13) | Woodruff key | ||
| (14) | Crankshaft bearing #1, #3 | ||
| (15) | Crankshaft bearing #2, #4 | ||
| (16) | Crankshaft bearing #5 | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T: Ref. to MECHANICAL (H4DOTC)>CYLINDER BLOCK>INSTALLATION .
