EGR Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Set a new gasket, and temporarily install the EGR pipe No. 1.

Courtesy of SUBARU OF AMERICA, INC.

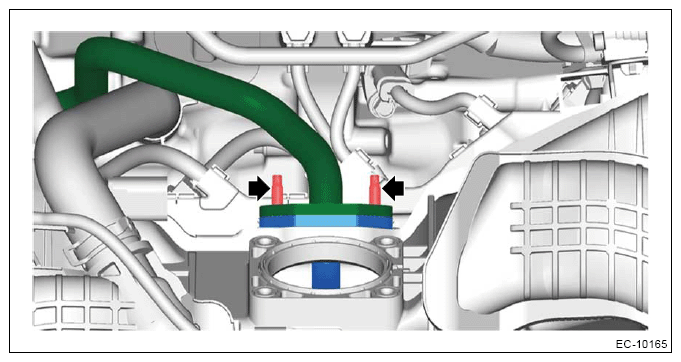

Set a new gasket and EGR pipe No. 2, and install the stud bolts using TORX® E5.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts securing the EGR pipe No. 2 in the numerical order shown in the figure.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

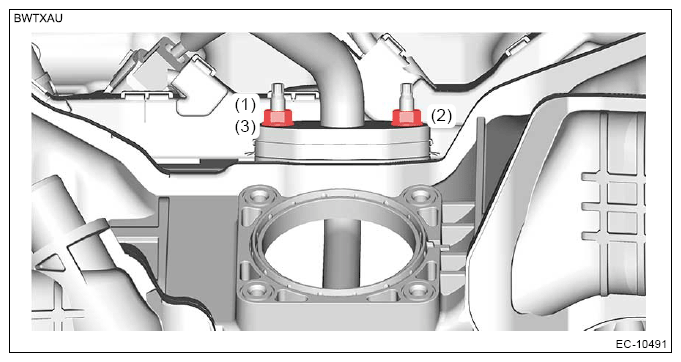

Fig 1: EGR Pipe No. 2 Nuts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

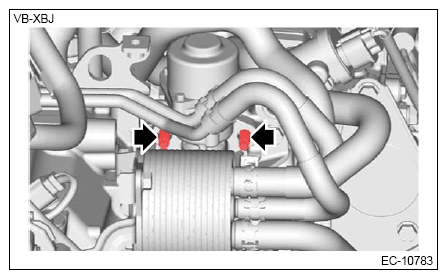

Set a new gasket, and install the stud bolts using TORX® E8.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts securing the EGR control valve in the numerical order shown in the figure.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

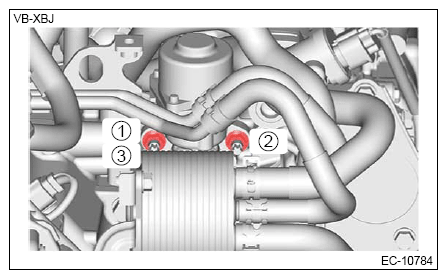

Fig 2: EGR Control Valve Nuts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>THROTTLE BODY>INSTALLATION .
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
