EGR Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  3. Disconnect the connector (A).
  4. Remove the bolts securing the EGR control valve to the EGR cooler.
    G16384380Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen the bolts (A) holding the EGR cooler.
  6. Remove the nuts securing the EGR control valve.

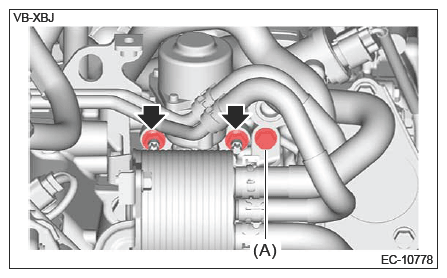

    G16384381Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the stud bolts using TORX® E8, and remove the EGR control valve.
    G16384382Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the gasket.

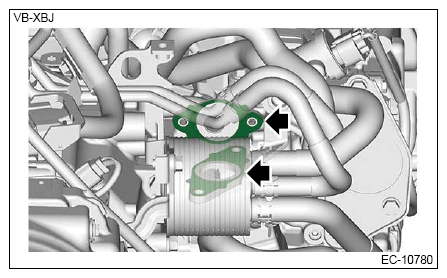

    G16384383Courtesy of SUBARU OF AMERICA, INC.
