Section 12 (Emission Control Systems (Aux. Emission Control Devices) (2.4L)): Canister: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the clip (C) and canister bracket (B).

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  2. Connect the purge tube (A). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
    G13618676Courtesy of SUBARU OF AMERICA, INC.

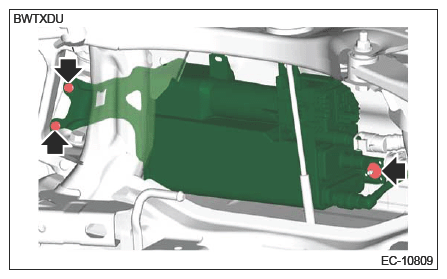

  3. Install the canister.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

    G16384342Courtesy of SUBARU OF AMERICA, INC.

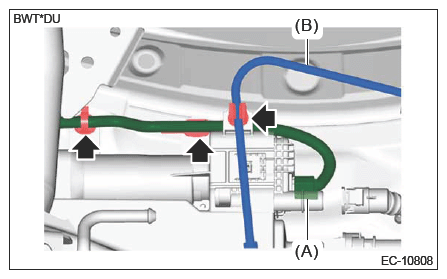

  4. Install the circulate tube (B) to the clip.
  5. Secure the harness to the canister, and connect the connector (A).
    G16383128Courtesy of SUBARU OF AMERICA, INC.

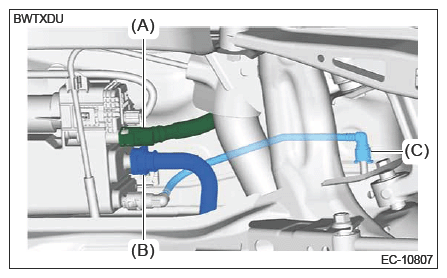

  6. Connect the purge tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
  7. Connect the vent tube (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .
  8. Connect the drain tube (A). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .
    G16384340Courtesy of SUBARU OF AMERICA, INC.
  9. Install the rear differential. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>INSTALLATION .
  10. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
