Section 10 (Exhaust System (2.4L)): Muffler: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

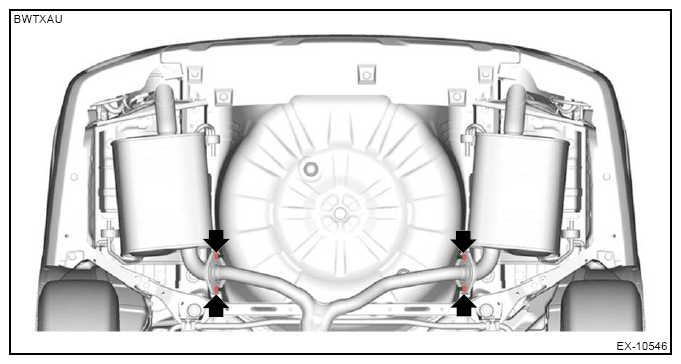

  1. Disconnect the rear exhaust pipe and muffler.
    CAUTION: Be careful not to let the muffler contact the rear bumper.
    G13620498Courtesy of SUBARU OF AMERICA, INC.

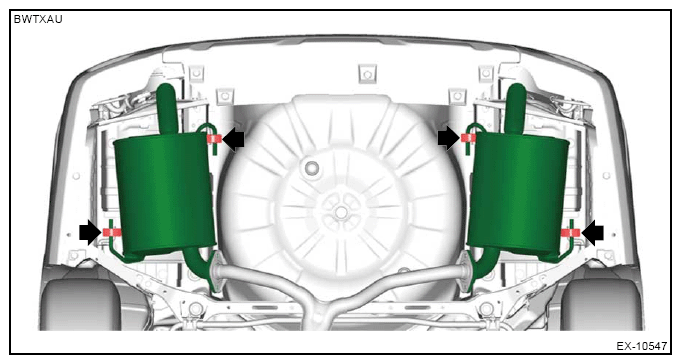

  2. Apply a coat of spray type lubricant to the mating area of cushion rubber.
  3. Remove the muffler.
  4. Remove the cushion rubber.
    NOTE: Perform this procedure only when required.
    G13620499Courtesy of SUBARU OF AMERICA, INC.

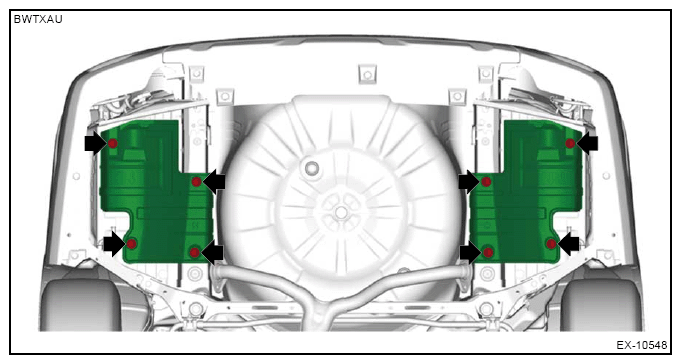

  5. Remove the rear exhaust cover.
    NOTE: Perform this procedure only when required.
    G13620500Courtesy of SUBARU OF AMERICA, INC.
