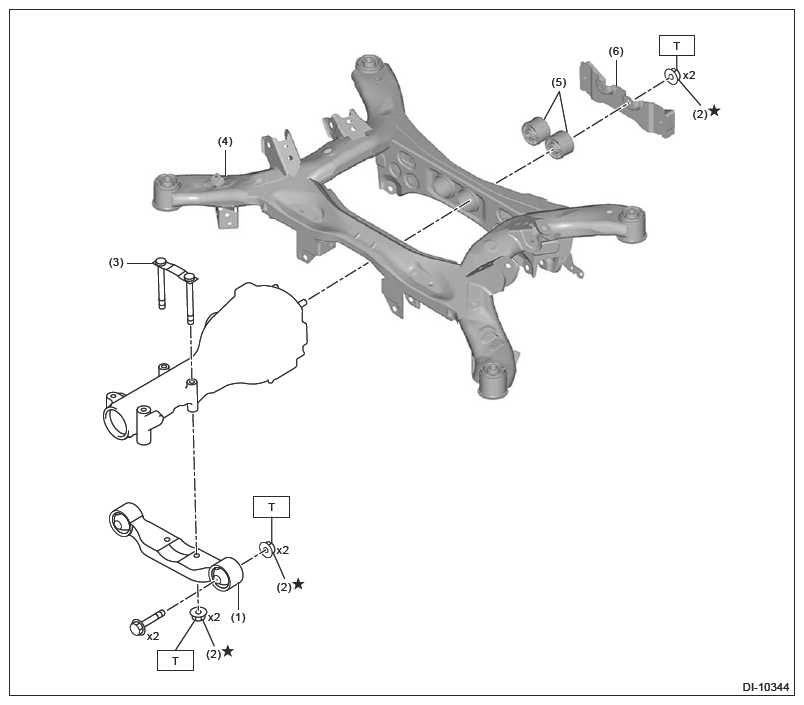

Rear Differential Mounting System
| (1) | Rear differential front member |
| (2) | Self-locking nut |
| (3) | Rear differential member plate |
| (4) | Sub frame ASSY rear |
| (5) | Rear differential mount bushing |
| (6) | Mass damper |
Tightening torque: N.m (kgf-m, ft-lb)
T: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VA-TYPE)>INSTALLATION .
