Ventilation Unit

  1. Disconnect the ventilation unit connector, and check the continuity between terminals of connector.

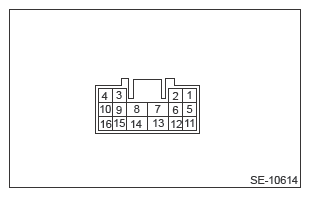

    Connector & terminal

    No. 8 - No. 13:

    No. 11 - No. 13:

    G13201395Courtesy of SUBARU OF AMERICA, INC.
  2. If no continuity exists, replace the ventilation unit with a new part. Ref. to SEATS>FRONT SEAT>DISASSEMBLY .
